5-1814832-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5-1814832-1
Datasheet:
Description:

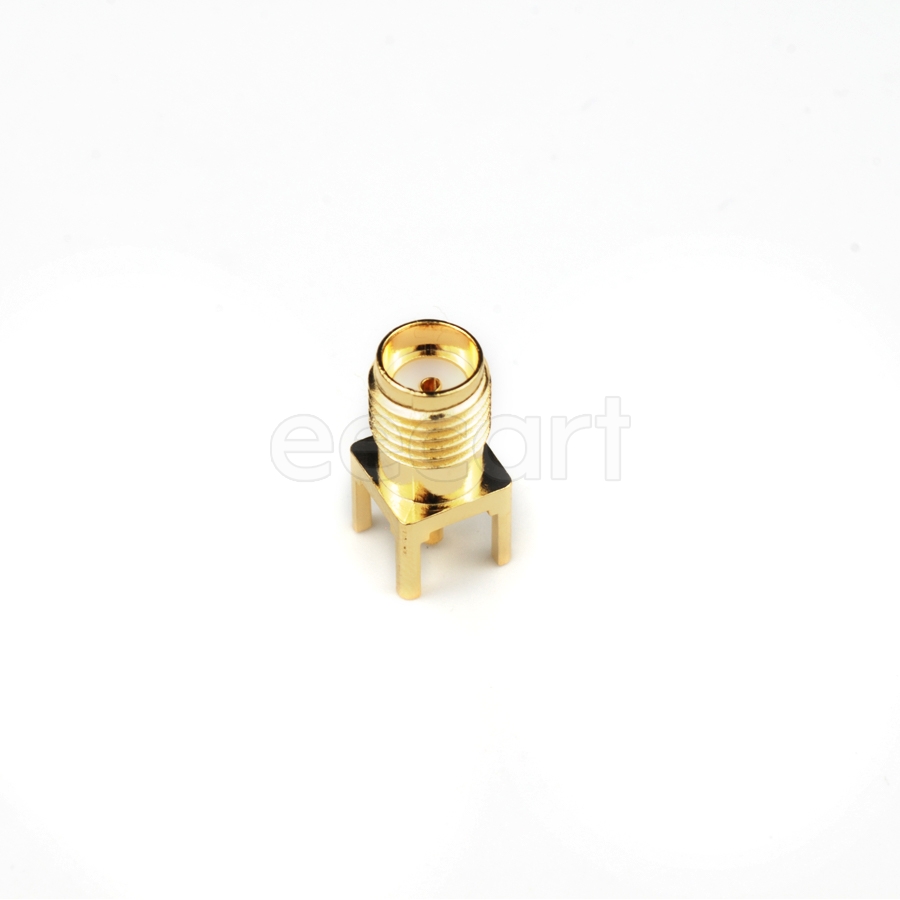

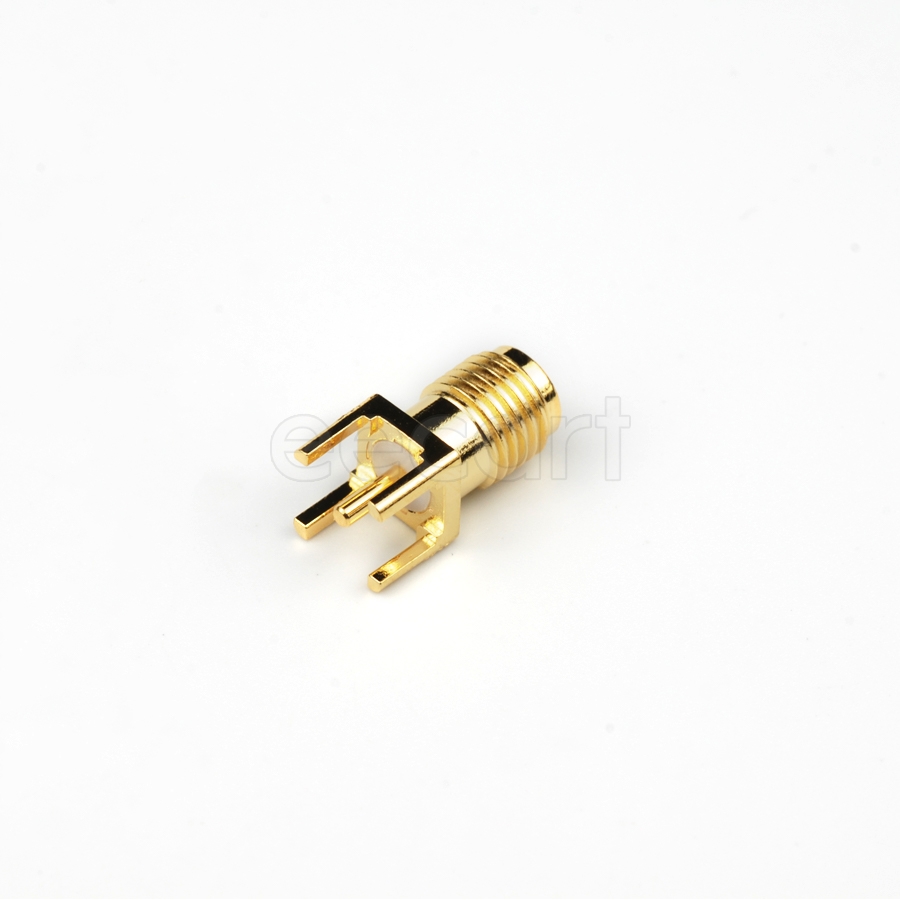

RF / Coaxial Connectors Through Hole SMA 50 Ω
| Parameter | Value |
|---|---|
| Length | 13.5128 mm |
| Termination | Solder, Through Hole |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 7.8 mm |
| Packaging | Box |
| Depth | 6.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Gold |
| Frequency | 3 GHz |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Number of Contacts | 1 |
| ELV | Compliant |
| Body Material | Zinc |
| Connector Type | SMA |
| Max Frequency | 3 GHz |
| Number of Positions | 1 |
| Insulation Material | PTFE |
| Fastening Type | Threaded |
| Outside Diameter | 6.35 mm |
| Plating | Nickel |
| Body Plating | Gold |
| Tail Length | 4 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
